  • Anti-accident protection monitor lift AML-18.5
  • Anti-accident protection monitor lift AML-18.5
  • Anti-accident protection monitor lift AML-18.5

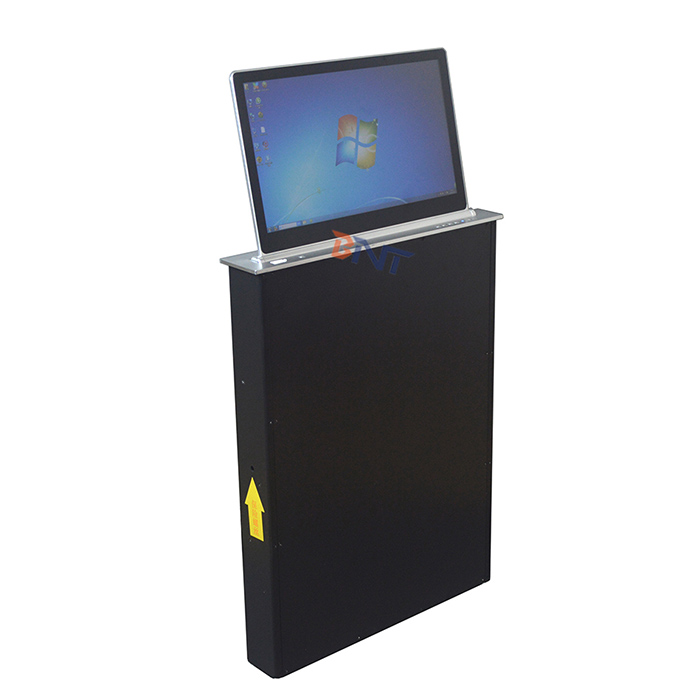

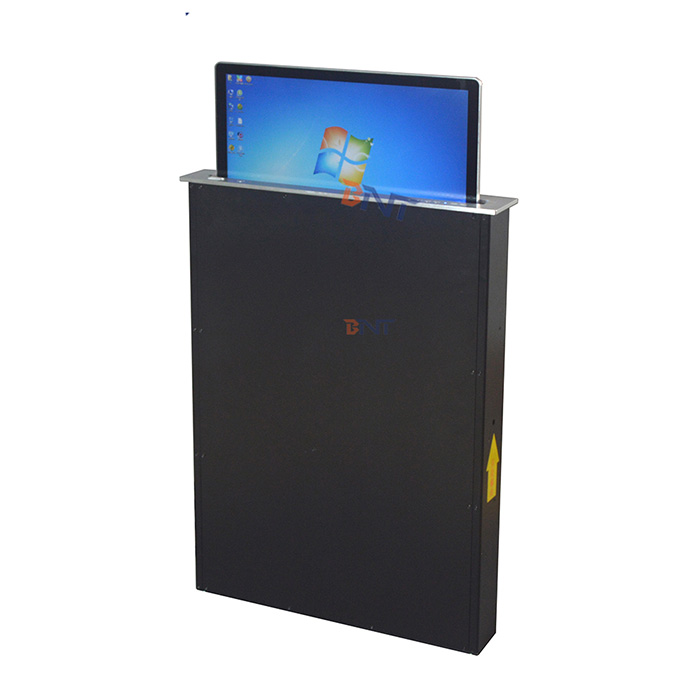

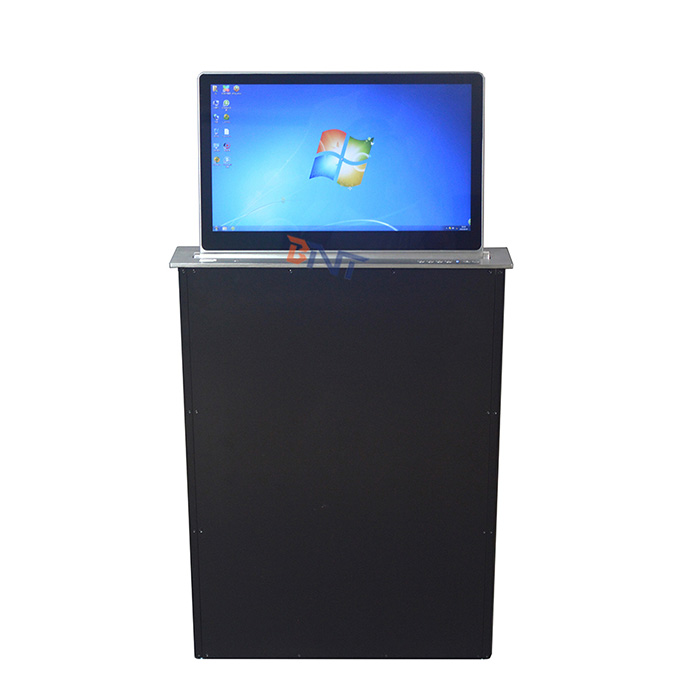

Name:Anti-accident protection monitor lift AML-18.5
Model No:AML-18.5
Type:Video Conference System
Item:Ultra-thin LCD lift with 18.5 inch screen
Color:aluminum black/silver
Monitor adjustable angle:0-30 degree
Material:aluminum alloy
Screen Size:18.5 inch LCD screen(16:9)
Monitor size:448*280*10mm
Panel Size:515*80*5mm
Box Size:497*71*620mm
Cutout Size:499*73mm
Resolution ration:1366*768
Interface:HDMI+USB+RS232 I/O

Product Description

Ultra light Retractable monitor lift AML-18.5

Keyword: lcd monitor lift, monitor lift, LCD lift, screen lift, retractable screen, motorized screen, pop up lcd monitor lift conference system


Introduction:



ALM-18.5 retractable monitor is designed as advance hiding equipment for video conference system.

15.6, 17.3, 18.5, 21.5, 23.6 inch Full HD Screen/ touch screen for selection to meet the requirment of different monitor size.



Upgrate design 80mm ultra thin width panel, the whole product use aluminum alloy material, which is light to save the shipping cost.

With double super-quite synchrous motor, rasing up and down by tank chain and mechanical gear, the lift is much smooth and quiet when working.

It is widly use in conference system,  video conference system, tv conference system, financial analyzing system, advanced office system,lecture and training room with conference table& computer desk,etc.



Selling Point:

1. Full aluminum alloy material, light, orrosion resistant, wear-resistant,smooth surface and not easy to scratch.

2. Ultra-thin Design, only 80mm width of whole product

3. Motorized by tank chain and mechanical gear, good quality and smooth and quiet when working

4. Hidden design to save more space and makes a modern office environment

5. Ultra thin monitor and lift boday, elegant design and save space

6. 0-30 degree adjustable angle to make prefect viewing angle for users

4. Virtually Silent working with excellent working life.

5. works smoothly and quietly, fast

6. with protecting function of LCD monitors by cutting the electricity off automatically

8. Control system: Touch Switch on LCD motorizedLift panel, RF remote control, RS232 AND rs 485 central control..

9. Power plug and voltage could be changed according to user's requirment

10. Build with anti-accident safe protection system


Detail Parameter:


Item Name18.5 inch LCD Monitor Lift
StyleUltra-thin LCD lift with screen
Model Number AML-18.5
MaterialFull aluminum alloy
ColorAluminum black/silver
Panel Dimension515*80*5mm
Box Size497*71*620mm
Monitor size448*280*10mm
Cutout Size499*73mm
Panel Thickness5MM
Monitor18.5 inch HD screen
Resolution Ratio1366*768
Screen Overturn Angle0-30 degree
Data InterfaceVGA Input,USB Input,RS232 I/O Port
Control SystemTouch Switch,Wirless Remote,Central Contorl RS232
ApplicationHigh Class Office Conference Meeting Room

Net weight

13kgs
