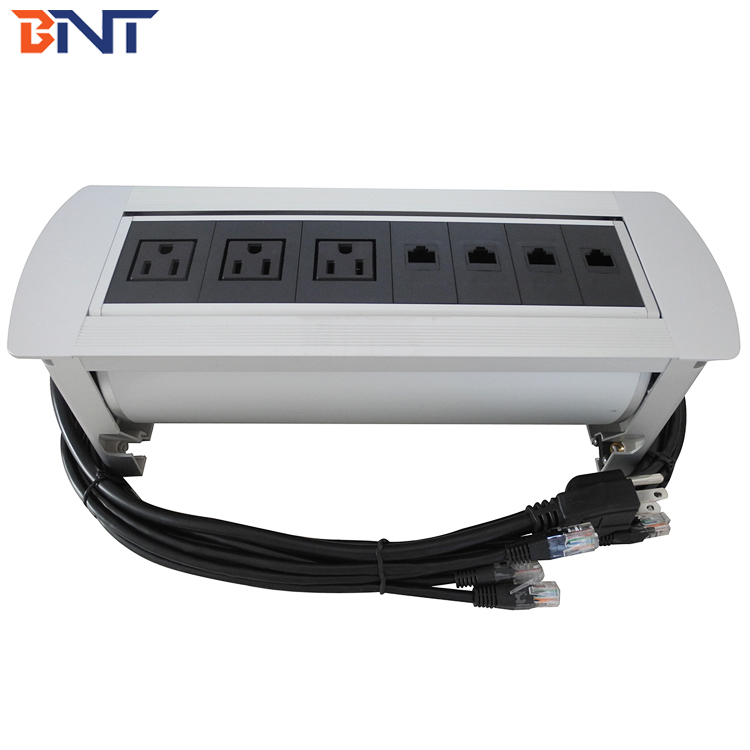

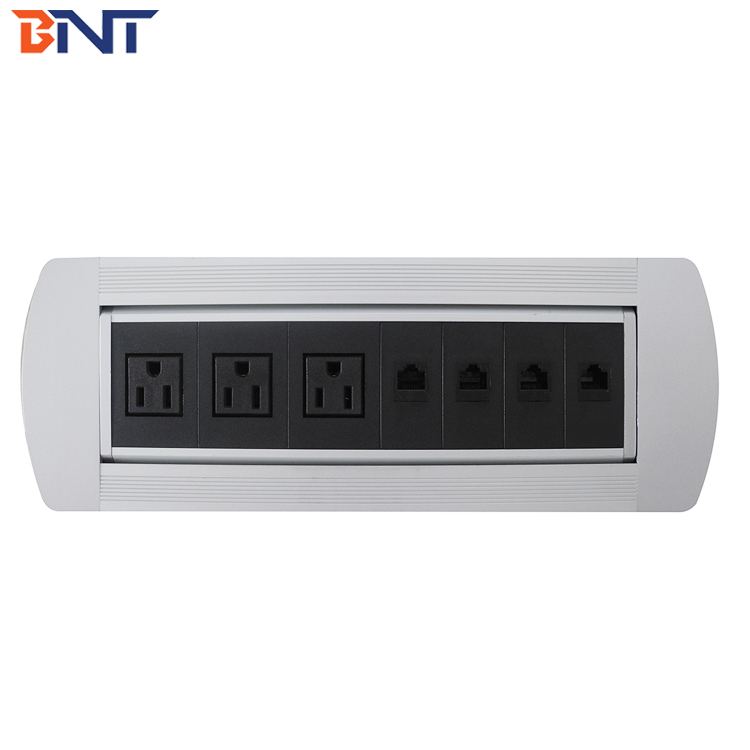

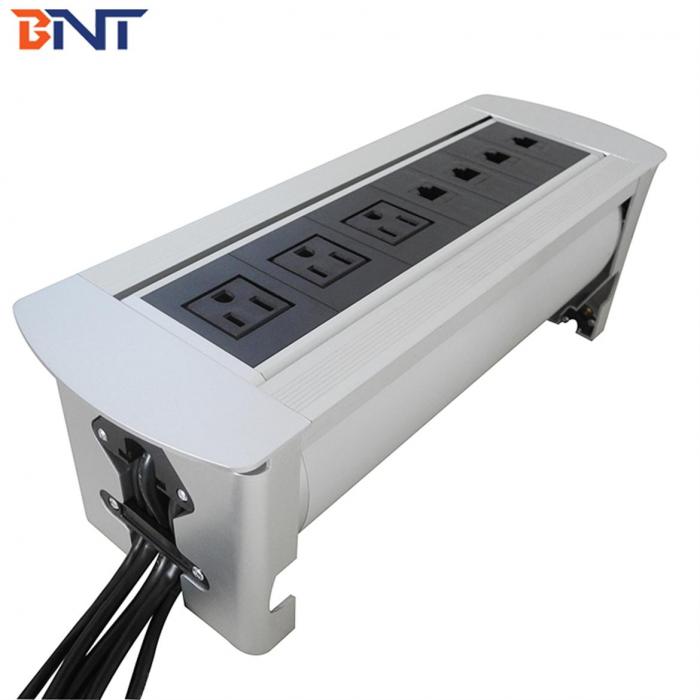

Name:Manual Table Hidden Outlet MK6340US
Model No:MK6340US
Type:Table Flip up Socket
Item:Tabletop hidden manual rotating power outlets
Color:Silver/Black
Material:Aluminum alloy surface panel + plastic hanger
Rotation Type:Manual rotating
Configuration:3*US power+4*network
Panel Thinkness:3MM
Panel Size:379*110mm
Cutout Size:349*104mm
Cable length:1.5 m (Length is available from 0.3m ~ 4.0m)
Rated voltage:110V ~ 240V AC
Rated current:10 ~ 13 Amp

Product Description

Manual Table Hidden Outlet  MK6340US

Keywords: conference system,desk socket, desk outlet,table socket, tabletop socket, desktop socket, table out, desktop-power-socket, hidden socket, hidden-desktop-socket, manual-desktop-socket, flip up socket, manual flip up socket


Introduction:

MK series desktop socket is designed as an morden manual flip up socket with muti-functional configuration,

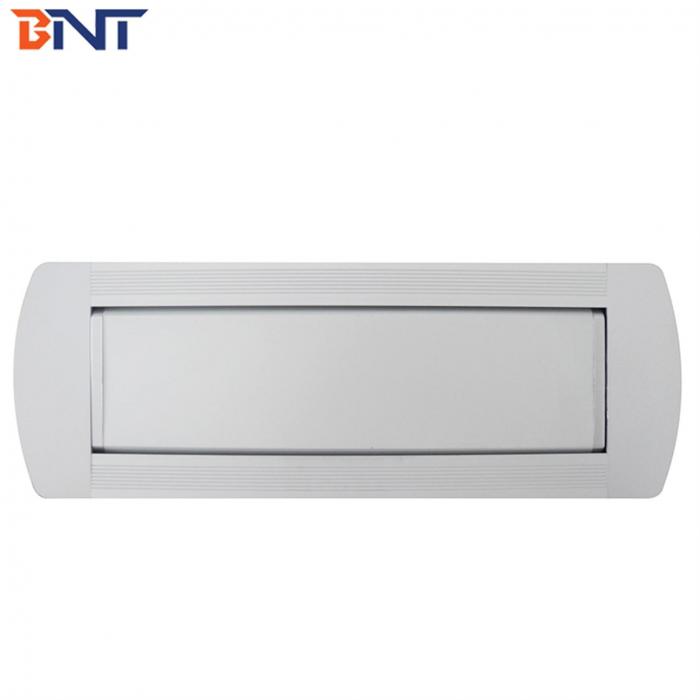

It is a hidden equipment as it is mounted on the tabletop to use and hidden into table when it is not be used.

Overturn clockwise the socket body by 180 degree to make the socket expose to the tabletop, the users can connect the socket for use.

At the same way, if it is unuse, overturn it on anticlockwise way to make the socket hidden under the table.

The configuration is changeable with different moduls for different application and requirment.

It’s widely used for the high-tier office table, conference room table AV solution, hotel room and training room.


Seiling Piont:

1.Manual flip up design,energy saving and easy to operate

2.Hidden design to save more space and makes a modern office environment

3.Competitive price and high quality

4.Made by Aluminum alloy material, which is corrosion resistant, wear-resistant,smooth surface and not easy to scratch.

5.High quality 3mm panel thickness aluminum panel surface, not easy to bend

6.1PCS customized is availble, the modules can be customized as the customer's requirement

7.Changeable configuraton with different modules for selection : HDMI, VGA, USB, Network, Audio, Video, Mic, RCA, power switch

7. Come out with 1.5M cable, support different kinds of power plug as customer's requirement

8. Easy installation, just cut out a square hole on the table and install the socket accordingly.


How to install and operation:

1. Cut out a properly square hole on the table;

2. Put the socket into the square hole, the connction cable hidden under the table;

3. Connect the power code, manually flip up 180 degree to use


Detail Parameter:

Typeautomatic  table hidden rotating outlet
ItemsMK6340US
StypleTabletop hidden manual rotating power outlets
GroudingStandard grounding
Configuration3*US power+4*network
MaterialAluminum alloy surface panel + plastic
Rotation TypeManual rotating (Motorized rotating is selection)
SwitchYes (without power switch is available)
Overturn angle180 degree
ColorSilver (black is available)
Panel size277*110 mm
Panel thickness3 mm
Cable length1.5 m (Length is available from 0.3m ~ 4.0m)
Rated voltage110V ~ 240V AC
Rated current10 ~ 13 Amp
Frequency50 / 60 Hz
Operation Temperature-20°C / + 50°C
Package8 units/carton
OEM/ODMYes
Warranty12 month
