Name:Retractable monitor lift with MIC BLL-15.6M
Model No::BLL-15.6M
Type:Motorized Monitor Lift
Item:Ultra-thin LCD lift with 15.6 inch screen + microphone
Color:Aluminum black/silver
Panel Dimension:488*88*5mm
Box Size:468*75*605mm
Cutout Size:471*78mm
Monitor:15.6 inch Samsung screen (16:9)
Resolution ratio:1920*1080
Microphone:conference system mic, fixed on panel
Monitor Overturn Angle:20 degree
Interface:HDMI+RS232 I/O+USB+XRL
Control System:touch button switch, wireless remote , central control RS232

Product Description

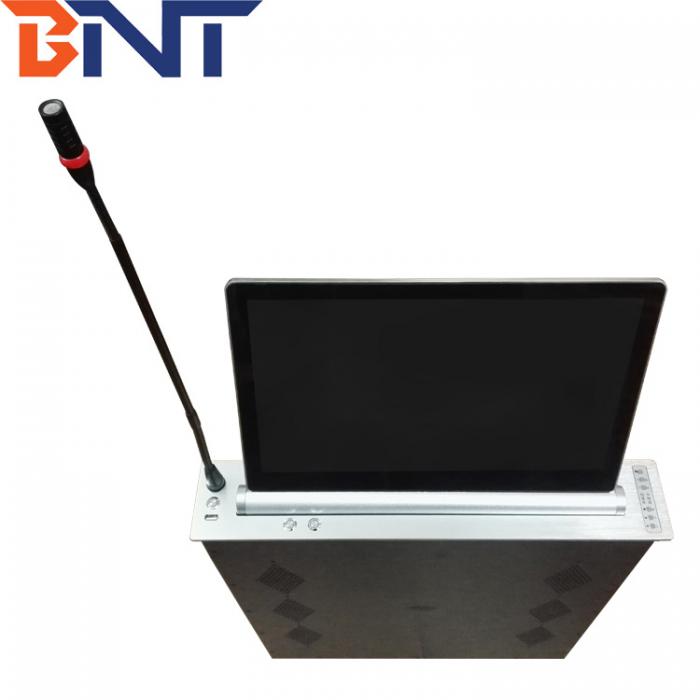

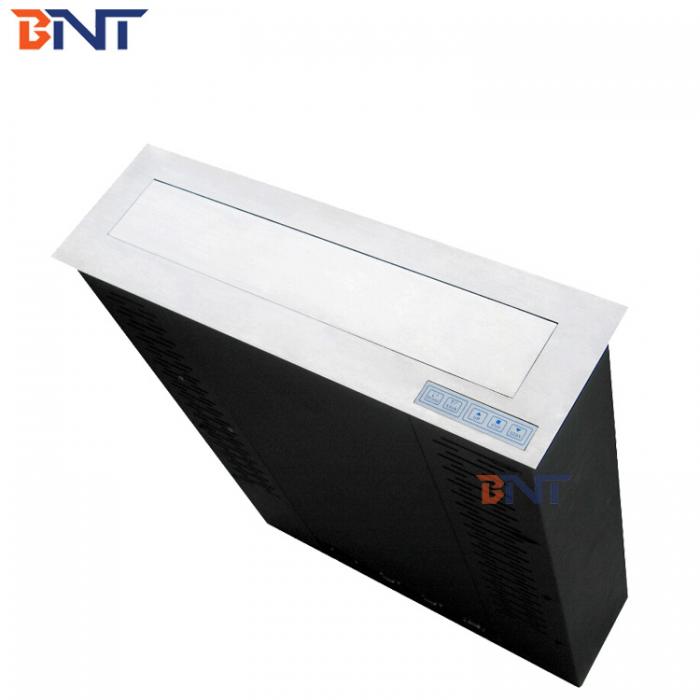

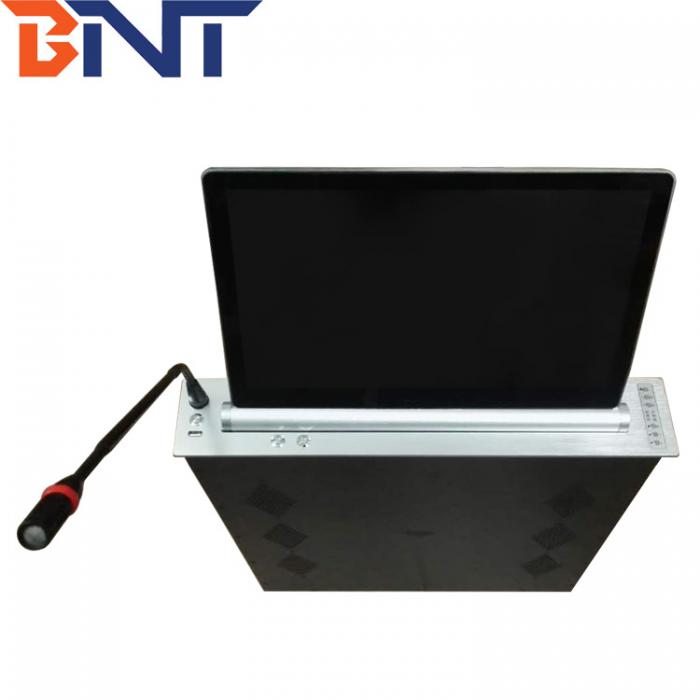

Retractable monitor lift with MIC BLL-15.6M

Keywords: LCD monitor lift, monitor lift, motorized monitor lift, LCD motorized lift, LCD screen lift, Conference System, LCD-monitor-lift-with-mic,LCD-monitor-lift-with-microphone, monitor lift, motorized screen,retractable-pop-up-screen, screen lift, FHD screen lift


Introduction:

BLL-15.6M is designed as a advance integration hiding equipment of ultra-thin Monitor Lift with

15.6 inch screen and microphone for conference audio video system.

15.6, 17.3 inch Full HD LED Screen for selection to meet the requirment of different monitor size.

With microphone fixed on panel , users could use the mic independently when they don't need the monitor.

Lift controlled conveniently by touch swith, remote control or central control, the screen could be rising up

together form the conference tables automatically throgh the lift driving.

On the other way, they could also be hidden under the table automatically by the users' control once finish using.

With double super-quite synchrous motor, rasing up and down by tank chain and mechanical gear, the lift is much smooth and quiet when working.

It is widly use in conference system,  video conference system, tv conference system, financial analyzing system,

advanced office system,lecture and training room with conference table& computer desk,etc.


Selling Point:

  1. Full aluminum alloy finish, orrosion resistant, wear-resistant,smooth surface and not easy to scratch.

  2. Ultra-thin Design, only 8.8cm width of whole product , with 5mm thickness monitor

  3. Motorized lift with 15.6inch FHQ screen microphone design, to meet the requirment of user's vision and talking

  4. conference system microphone fix on the lift pamel, can be control independently when they don't need the monitor

  5. Motorized by tank chain and mechanical gear, good quality and smooth and quiet when working

  6. Full HD LED Screen, high quality and brings a good viewing

  7. Hidden design to save more space and makes a modern office environment

  8. Ultra --thin monitor and lift body, elegant design and save space

  9. Automatically adjust to 20 degree overturn, adjustable angle could be control to make prefect viewing angle for users

  10. Virtually Silent working with excellent working life.

  11. works smoothly and quietly. Low noise which less than 30db

  12. with protecting function of LCD monitors by cutting the electricity off automatically

  13. Control system: Touch Switch on LCD motorizedLift panel, RF remote control, RS232 AND rs 485 central control..

  14. Power plug and voltage could be changed according to user's requirment



Specification:

Item NameMotorized Monitor Lift
StyleUltra-thin LCD lift with 15.6inch FHD screen+ microphone
Model No.BLL-15.6M
MaterialAluminum brushed frame & monitor shell
ColorAluminum black/silver
Panel Dimension 488*88*5mm
Panel Thickness5mm
Box Size468*75*605mm
Cutout Size471*78mm
Monitor15.6 inch Samsung screen (16:9)
Resolution ratio1080*1920
Microphoneconference system mic, fixed on panel
Monitor Overturn Angle20 degree
InterfaceHDMI+RS232 I/O+USB+XRL
Control Systemtouch button switch, wireless remote , central control RS232
Warranty1 year
