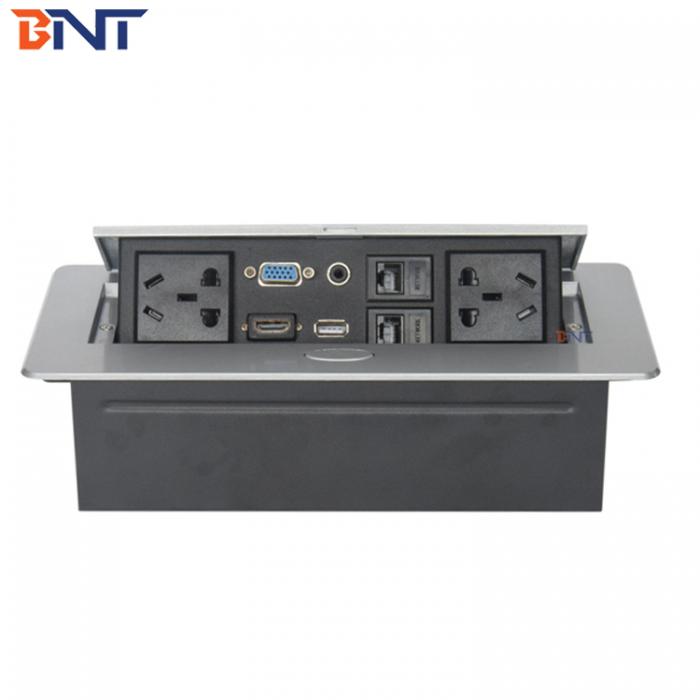

Name:Desk Pop Up Socket Box BD620-2
Model Number:BD620-2
Type:pop up desktop socket
Material:Zinc Alloy Material
color:Black/ Silver/White/Gold
Box Size:222*109*65mm
Panel Size:265*130*67mm
Panel Thickness:3 mm
corner:Oval /Square
button:Oval /Square
configuration:2*Universal Power + 2*Network + 1*VGA + 1*USB +1*HDMI + 1*3.5 Audio
Rated voltaeg:110 ~ 240 VAC
Rated current:16 A
warranty:1 Year

Product Description

3mm Panel Thickness Desk Pop Up Socket Box Oval Button With VGA Interface BD620-2


Introductions:

Conference tabletop hidden pop up socket, one modern office conference room multifunction AV power connector solutions. This socket normally contain the office high-quality projection audio video connected function for HDMI,VGA, Audio and Video.What's more, it normally supply with the universal power outlets which can fit for every difference power plugs.

This socket normally mount on the table and all connectors and hidden under the surface zinc alloy panel. Could save more space and keep table integral and conforming. To supply a fashion and modern environment for office and meeting room.



Selling Point:

1.No Power Cord

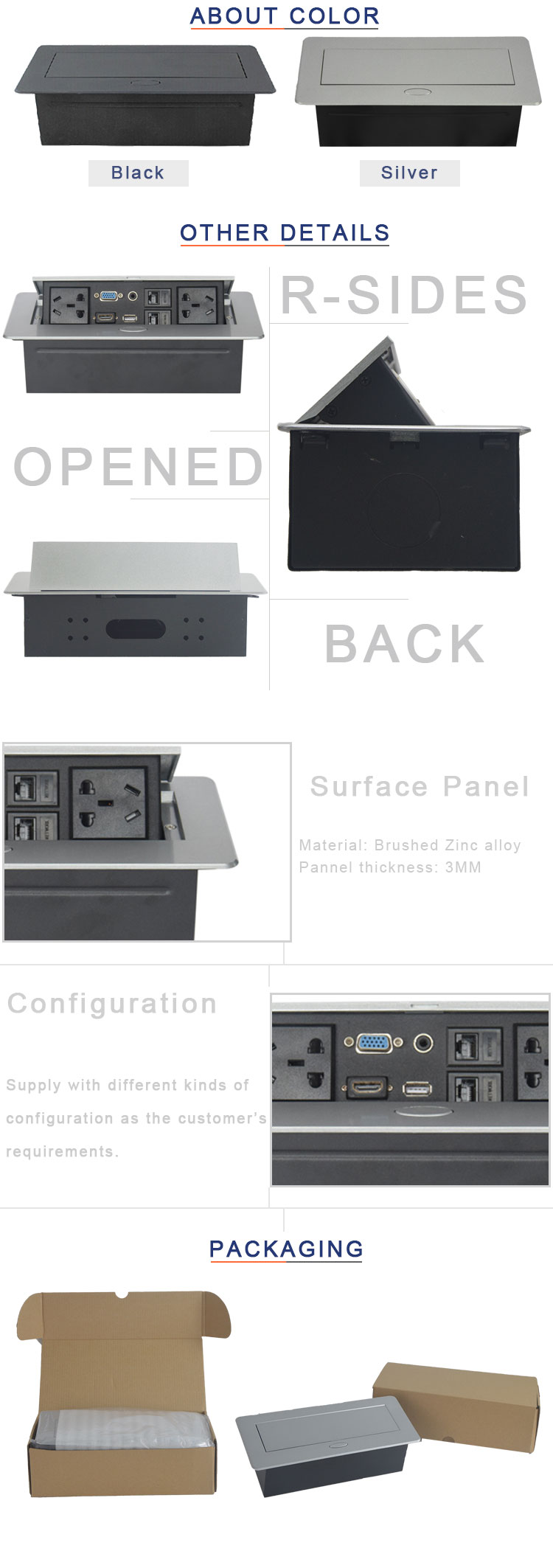

2.Square / Oval Corner and Pop Up Button

3.Panel surface made of zinc alloy material with anode oxidation process, bottom case made of steel material, powering with black color. Antioxidative and won't loose color.

4.Hidden socket into table underside to keep desktop surface more neat, modern and save more space.

5.Just press the product button, the spring inside the socket box will pop all media socket with plat up to the tabletop, user could plug each connector directly.

6.Normally install desktop power plug on office furnishes, like office desk, meeting table or other office worktop.

7. Smart and compact, easy to installion and operation,



Our Service:

1.More than 200pcs can be customized for other colors

2.100pcs or more can be printed logos

3.50pcs can be customized

4.Supply with difference connection wire plugs as requirement.

5.OEM / ODM with difference modules and logos accordingly.

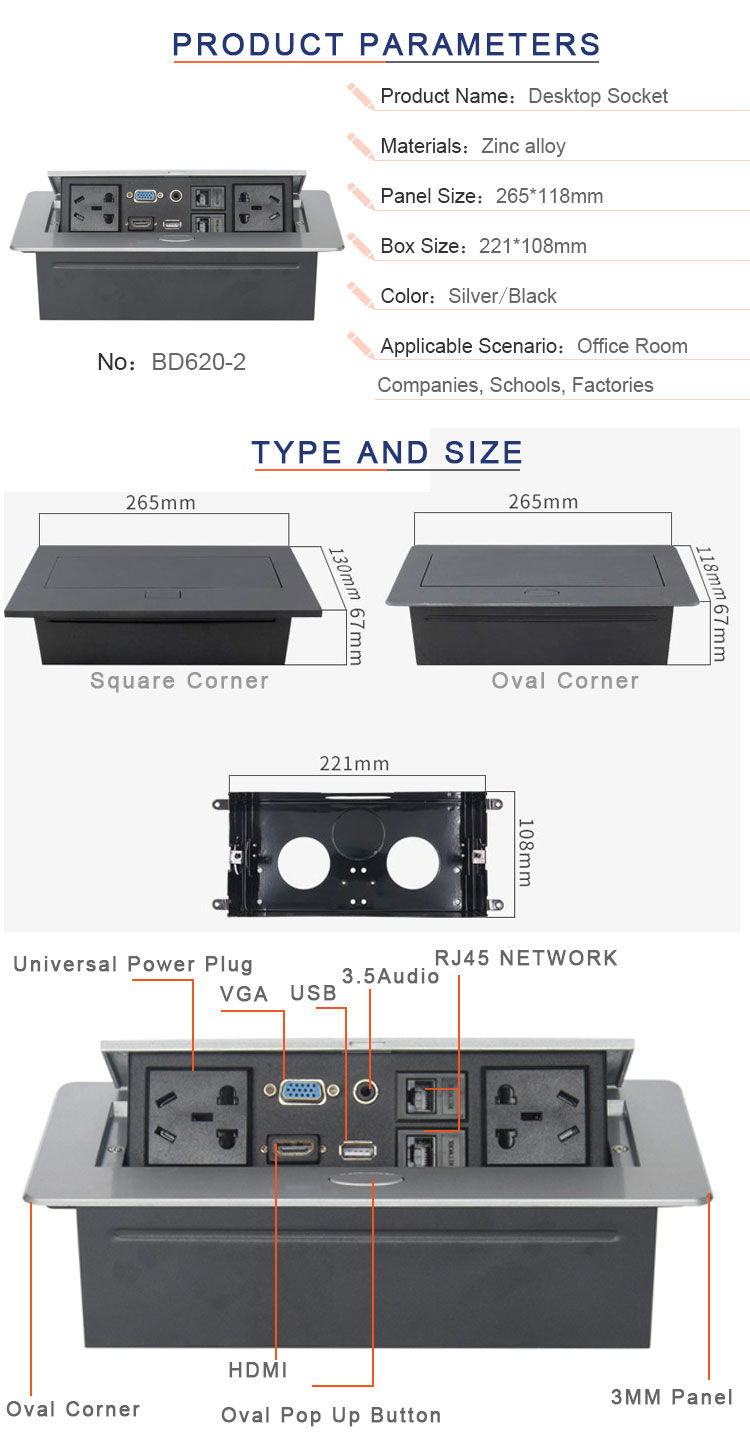

Sppecification:

Typepop up desktop socket
Model NumberBD620-2
Material zinc alloy
Product Size265*130*67mm
Box Size222*109*65mm
ColorSilver/Black
CornerOval /Square
configuration2*Universal Power + 2*Network +  1* VGA + 1* USB  +1* HDMI + 1* 3.5 Audio
ButtonOval /Square
Panel Thickness3mm
