Computer LCD motorized lift is a new design of electrical lifting monitor mechanism with screen tilting function. It’s a hidden equipment for audio video conference system.
| Name: | 19 inch Monitor lift and mic lift BML1-19 |
|---|---|
| Model No:: | BML1-19 |
| Item: | Monitor monitor microphone lift |
| Type: | Available for 19inch screen with microphone |
| Material: | Aluminum alloy brushed panel |
| Color: | Silver /Black/ Gold |
| Panel Dimension: | 600*175*5mm |
| Panel Thickness: | 5mm |
| Box Size: | 575*153*625mm |
| Monitor size required: | 403*330*68mm |
| Pitch angle: | 0-15 degree |
| Control System: | touch switch, wireless remote , central control RS232 |
| Application: | High-class office conference meeting room |
| Warranty: | 1 year |
Product Description

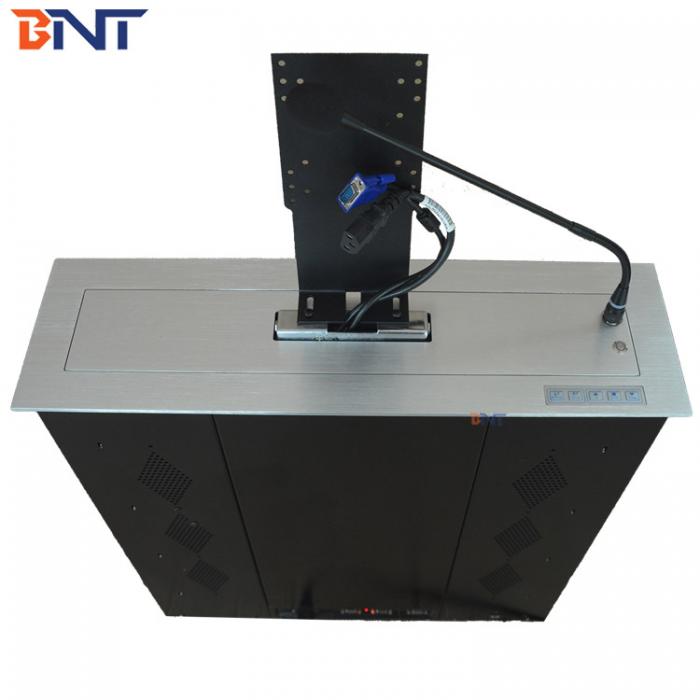

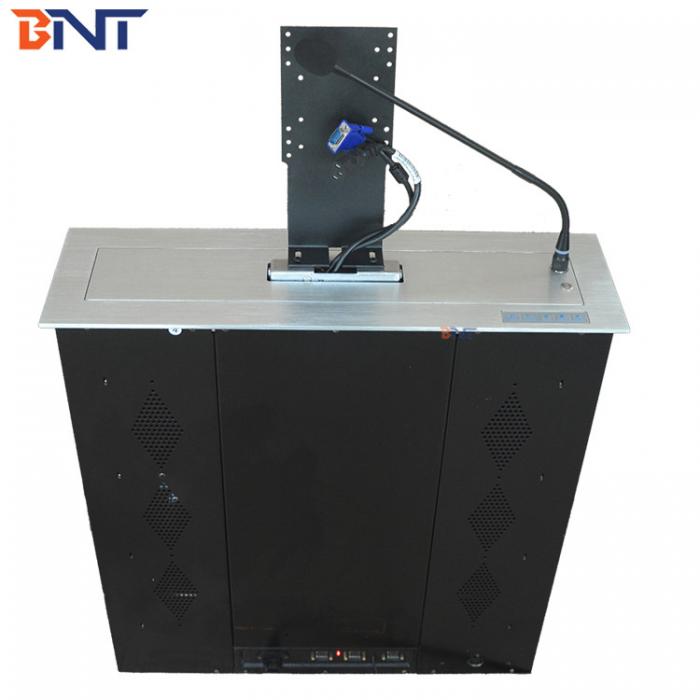

19 inch Monitor lift and mic lift BML1-19
Keywords: LCD monitor lift, LCD motorized lift, monitor lift, screen lift, LCD electric lift, Computer LCD lift, pop up LCD monitor lift, LCD monitor motorized lifting system, Monitor electric lifting mechanism, monitor lift with mic
Introuction:
BML1-19 is designed as a advance integration hiding monitor Lift with microphone for conference audio video system.
With the universal VESA mounting panel, available for all types of monitors within 403*330*68mm size.
Controlled conveniently by central control, touch swith or remote control, the screen and mic could be rising up
together form the conference tables automatically throgh the lift driving.
On the other way, they could also be hidden under the table automatically by the users' control once finish using.

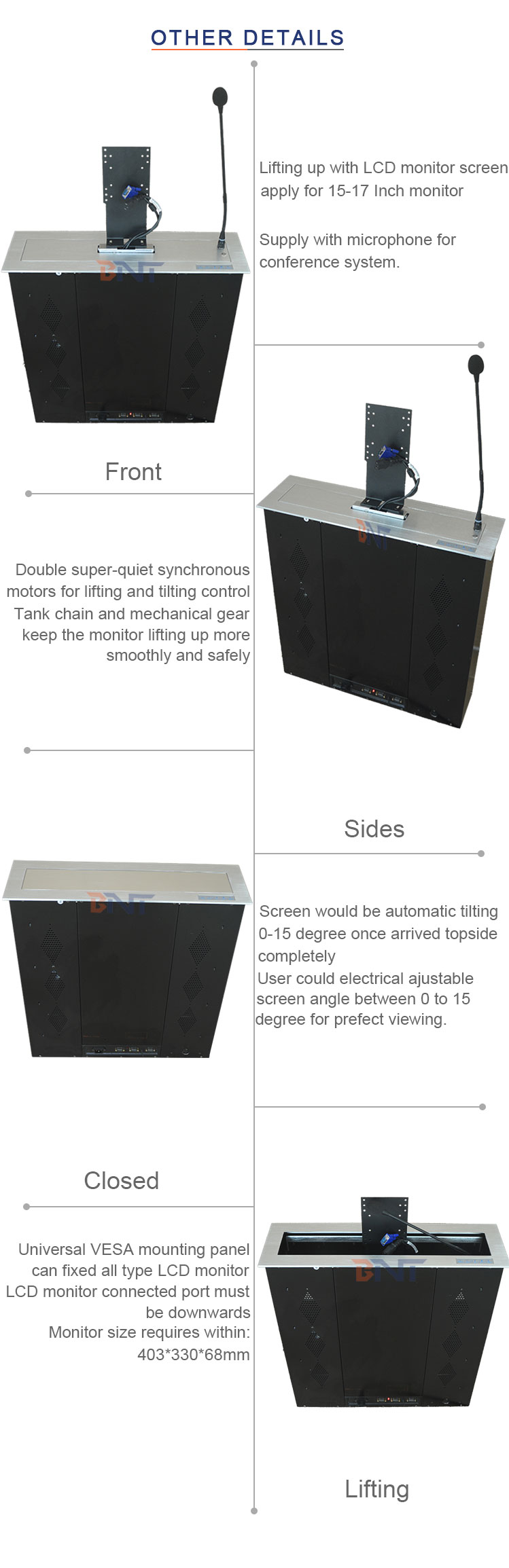

With double super-quite synchrous motor, rasing up and down by tank chain
and mechanical gear, the lift is much smooth and quiet when working.
It is widely used on conference system, like video conference system, tv conference system, financial analyzing system, advanced office system,
lecture and training room with conference table& computer desk together.

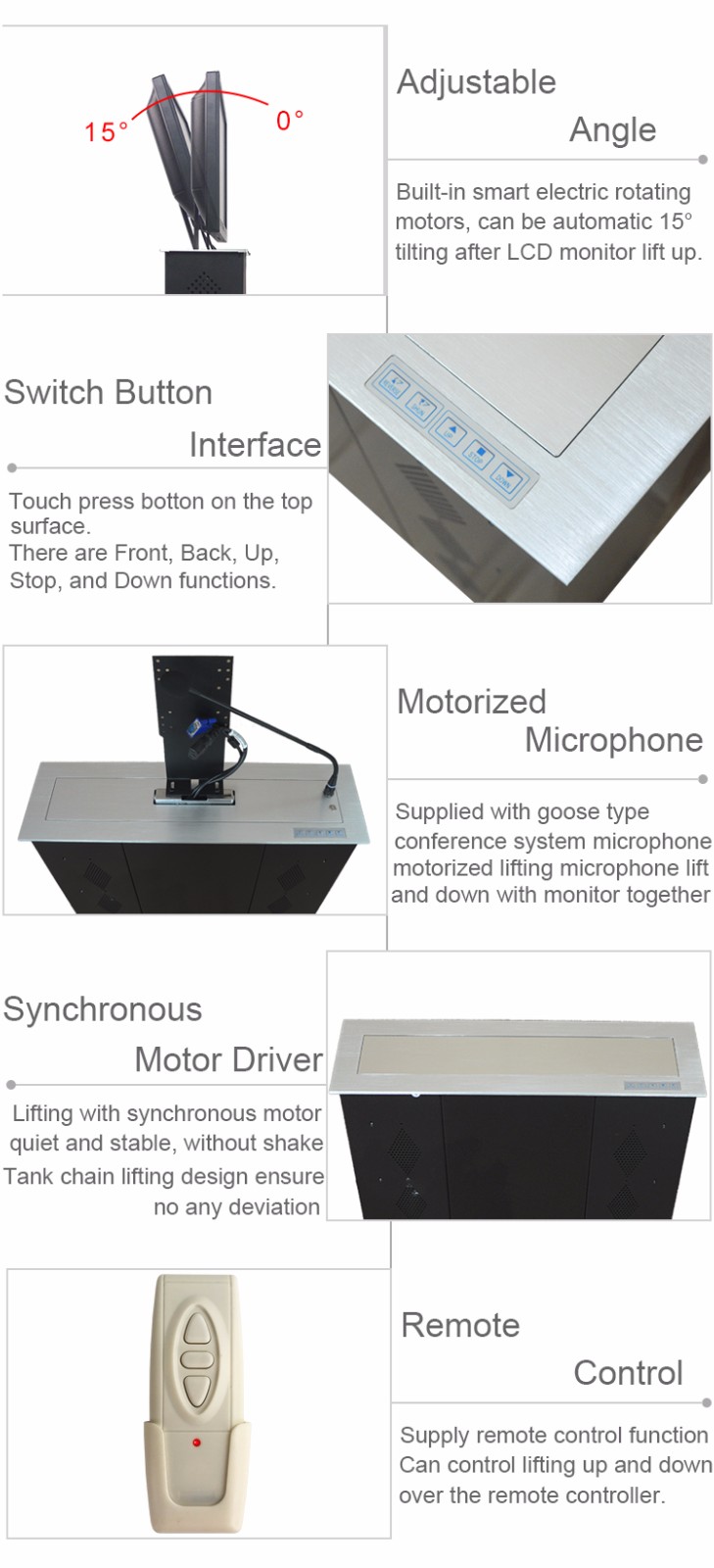

Selling Point:
Aluminum alloy finished, orrosion resistant, wear-resistant,smooth surface and not easy to scratch.
Electric control,height-adjustable.
Suitable for 19inch LCD monitors and all types of monitors within 403*330*68mm size.
conference system microphone, can be control independently by button switch
Motorized by tank chain and mechanical gear, good quality and smooth and quiet when working

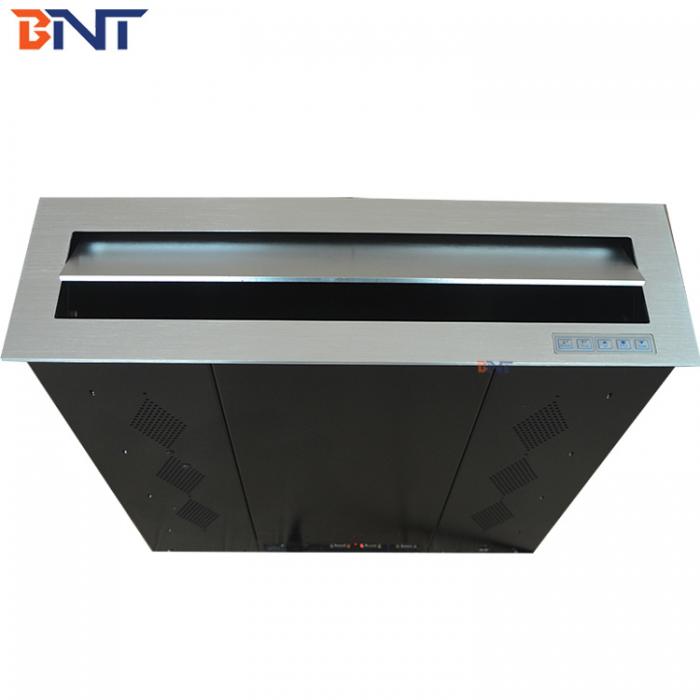

Hidden design to save more space and makes a modern office environment
0-15 degree adjustable angle to make prefect viewing angle for users
Virtually Silent working with excellent working life.
works smoothly and quietly. Low noise which less than 30db
with protecting function of LCD monitors by cutting the electricity off automatically

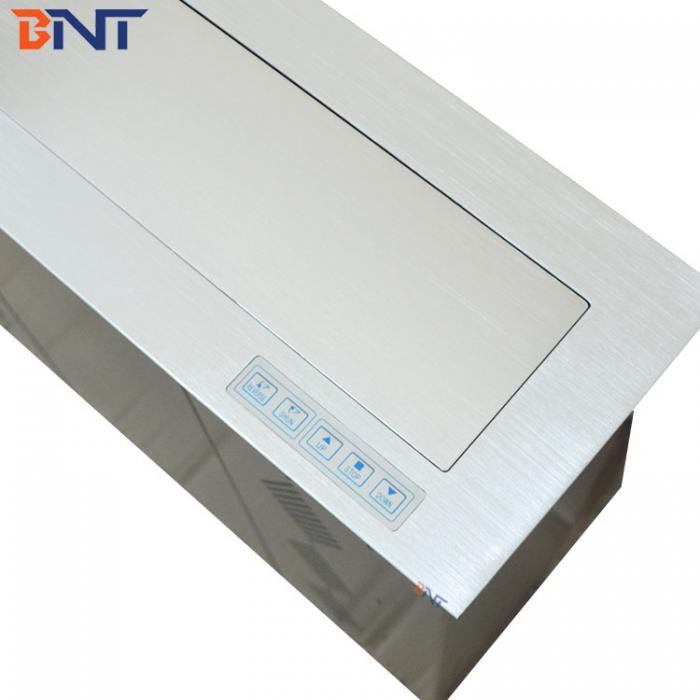

Control system: Touch Switch on LCD motorizedLift panel, RF remote control, RS232 AND rs 485 central control..
Power plug and voltage could be changed according to user's requirment

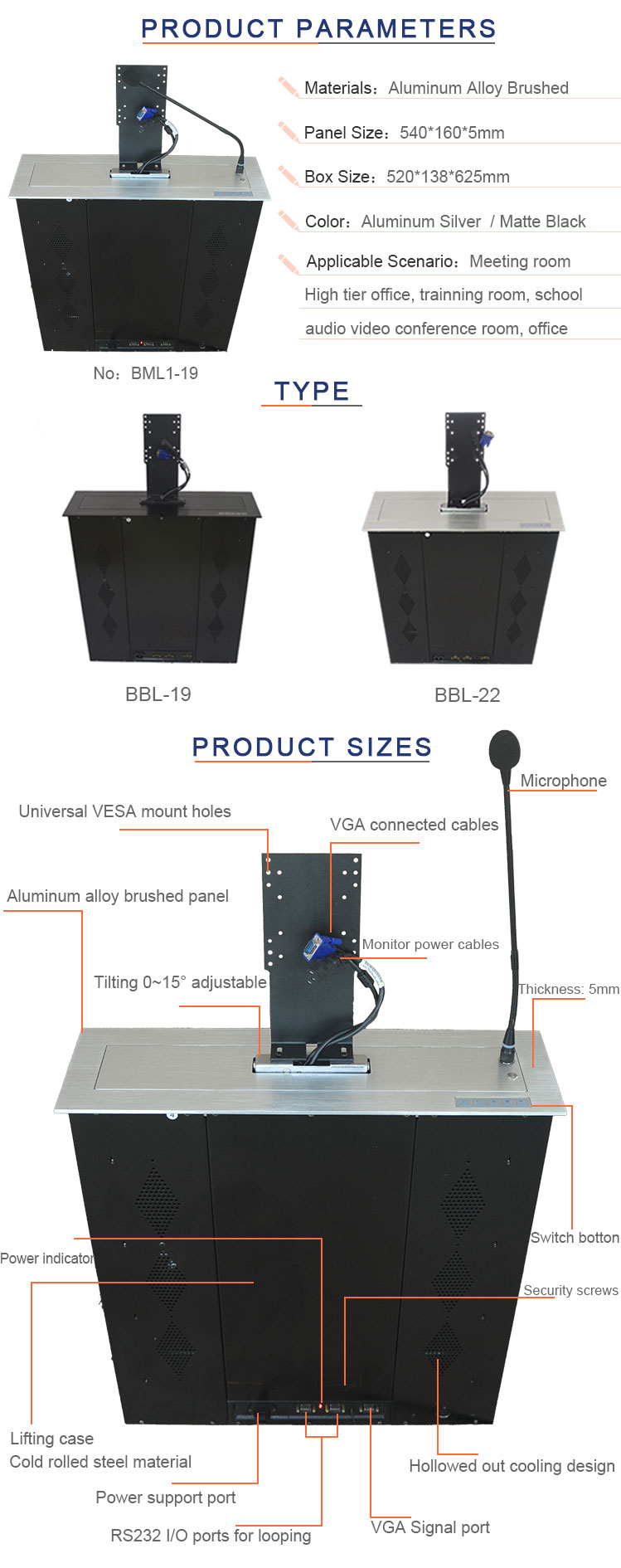

Parameter:
| Item Name | Monitor monitor microphone lift |
| Style | Available for 19inch screen with microphone |
| Model No. | BML1-19 |
| Material | Aluminum alloy brushed panel |
| Color | Silver /Black/ Gold |
| Panel Dimension | 600*175*5mm |
| Panel Thickness | 5mm |
| Box Size | 575*153*625mm |
| Monitor size required | 403*330*38mm |
| Pitch angle | 0-15 degree |
| Control System | touch switch, wireless remote , central control RS232 |
| Application | High-class office conference meeting room |
| Warranty | 1 year |
