Name:Tabletop LCD Monitor Lift BBL-19
Model No::BBL-19
Style:Motorized monitor lift
Power:20-25W
Color:Black/ Silver
Material:Aluminum Alloy
Suitable Size:19 inch LCD screen
Panel Thickness:5mm
Panel size:550*160*5mm
Box Size:535*145*655mm
Monitor Pitch Angle:0~15 Degree
Swtich:touch button+wireless remote
Voltage:110V-240V
Interface:VGA/HDMI +RS232 I/O

Product Description

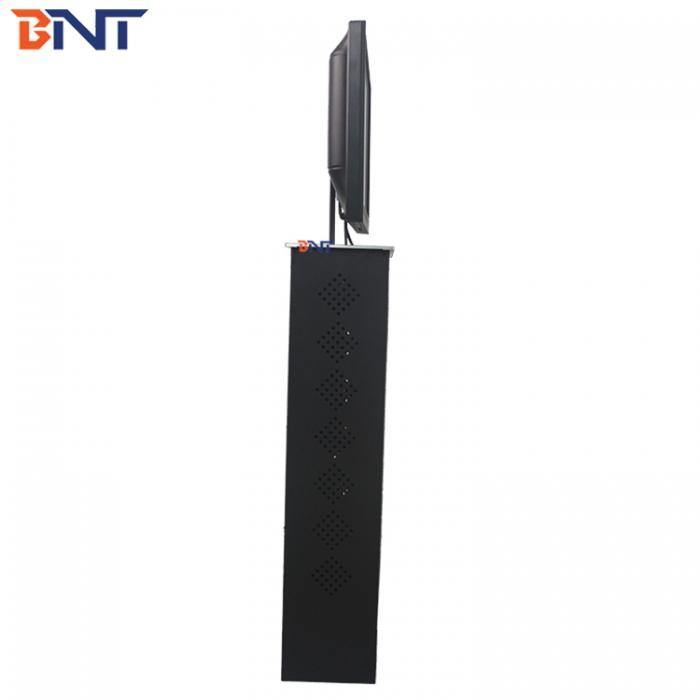

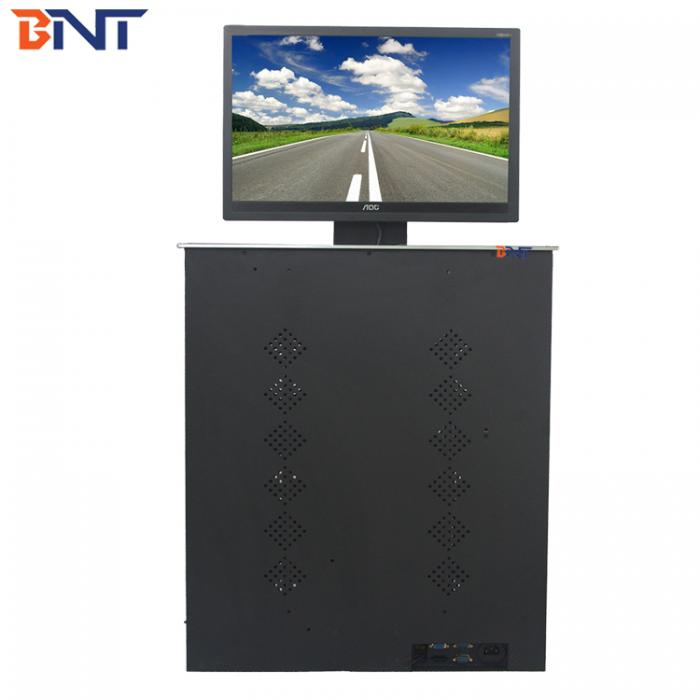

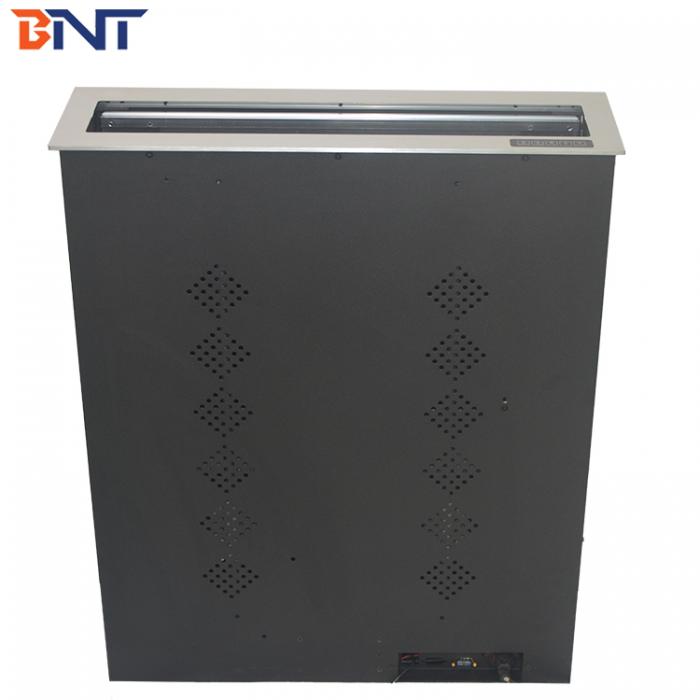

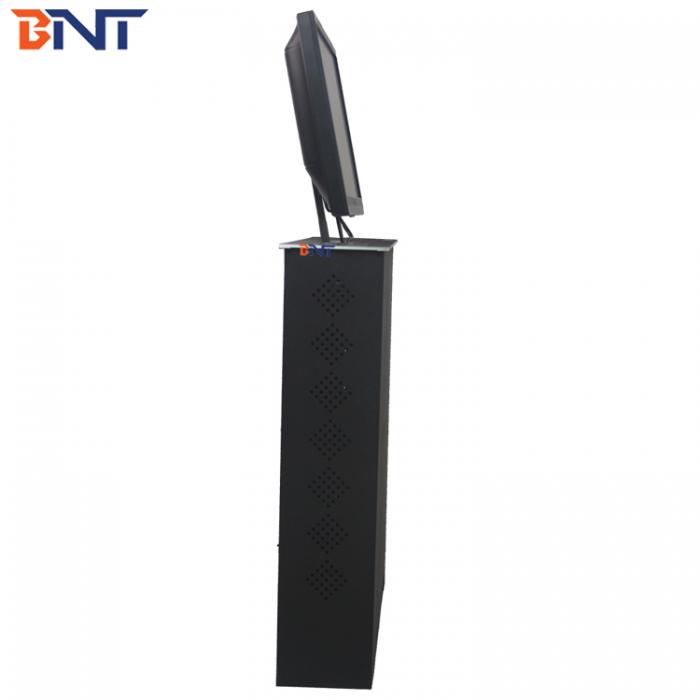

Tabletop LCD Monitor Lift BBL-19


Introduction:

Pop up lcd screen lift system is advance hiding equipment designed for audio video system in office furniture. The LCD screen of Pop up lcd screen lift system k could be rising down into the desk and hidden under the office table when unused; Screen inside Pop up lcd screen lift system would be rising up from table automatically by touch switch or remote control and present the workable screen on the desktop if used.

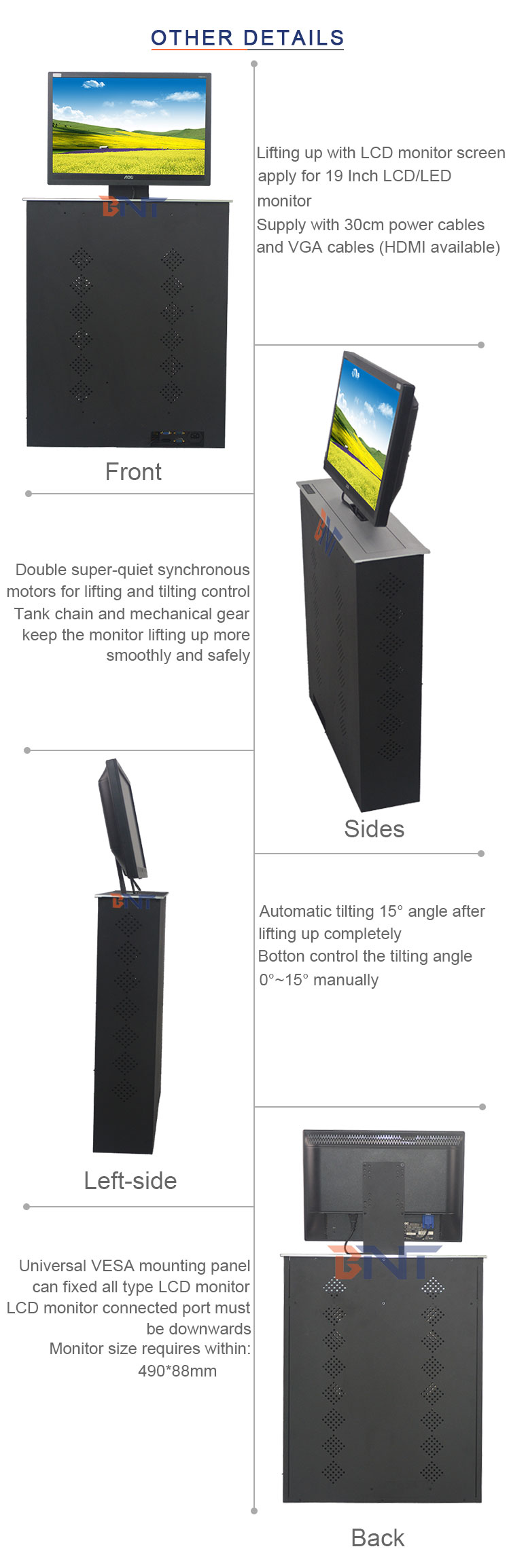

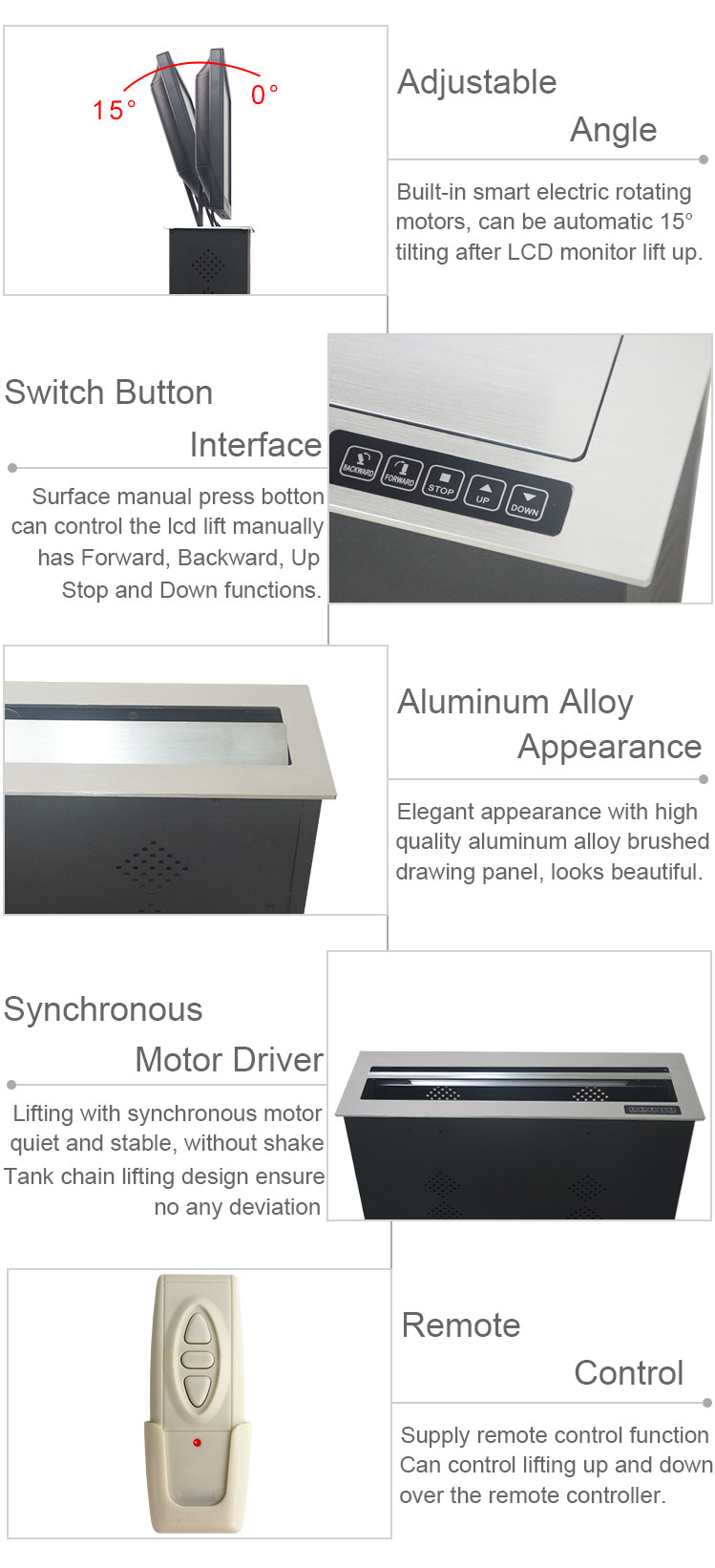

Feature:

1, The panel of LCD lift is aluminum alloy/steel stainless, with aluminum wire drawing process on surface.

2, The monitor lift adopts synchronous orbit lifting principle.

3, Electric LCD Jack works smoothly and quietly. Low noise which less than 30db.

4, Screen Lift  provides protecting function of LCD monitors by cutting the electricity off automatically.

5, LCD monitor lift  would be adjustable elevation angle of LCD monitor for protecting your eyes from the direct light.

5, Motorized LCD monitor lift is controlled by two big AC motors. One controls opening and closing the panel; one controls lifting the monitor up and down and adjust the angles of the monitor.

6, Control system: Touch Switch on monitor lift panel, RF remote control, RS232 AND rs 485 central control.



Application:

Pop up lcd screen lift system  is widely used on conference system, like video conference system, tv conference system, financial analyzing system, advanced office system, lecture and training room with conference table& computer desk together.

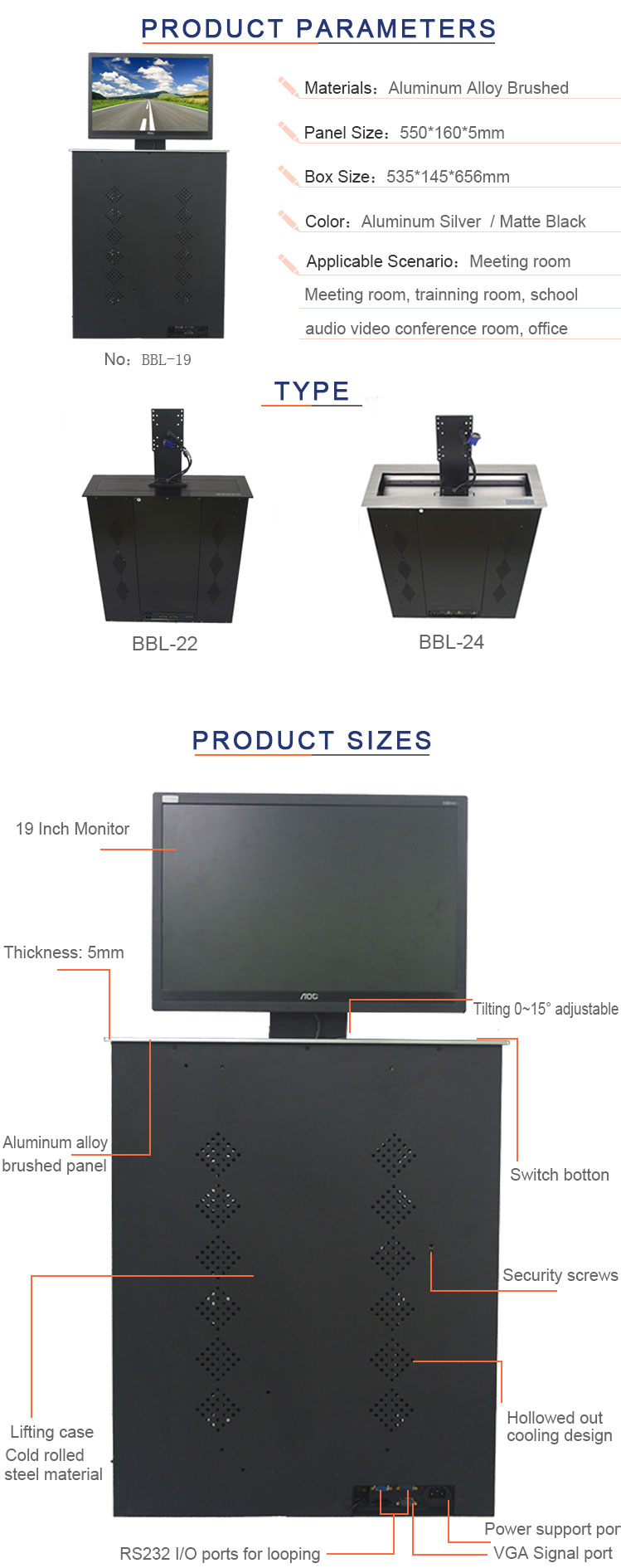

Detail Parameter:

Style
Motorized monitor lift
MaterialAluminum alloy
Panel Size490**160*5mm
Box Size460*145*655mm
Monitor Pitch Angle0~15°
ColorBlack/ Silver
InterfaceVGA/HDMI +RS232 I/O
Control
Supplied with RF remote control
Voltage110V~240V
Power20-25W
